Pouches Packing Machine Mini Doypack Premade Pouch Packaging
Machine
Machine Specification:
| Item | 200 | 300 | 430 |
| Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
| Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
| 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| Bag Type | 3 Side Seal Bag, Stand-up Bag |
| Upgradable Bag Type | N/A | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
| Speed | 0~26bags/min | 0~15bags/min |
| Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) |
| Sealing Width | 8mm | 10mm(5--20mm can be customized) |
| Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW |
| Air Pressure | 0.65Mpa |
| Air Consumption | 0.2m³/min | 0.3m³/min |
| Standard machine, no additional function |
| Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
| Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
| Export non-fumigation wooden case |
(We can provide you with exclusive packaging machine customization
services according to your needs! Of course,If you need, we can
also provide you with customized bag service)

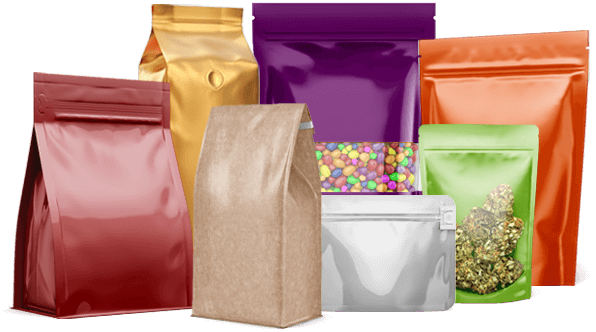

Premade bags can be roughly divided into the following types
according to the form of packaging: three-side sealing, eight-side
sealing bags, middle-sealing side-sealing bags, four-side sealing
bags, self-supporting bags, zipper bags, straw bags, special-shaped
bags, suction nozzle self-supporting bags bags etc.
Mini Doypack Packaging Machine is specially developed for the
packaging application of various composite film prefabricated bags,
with compact structure and reasonable action. It adopts the
touch-type color touch screen interface operation, the upper bag is
placed, the orientation is adjustable, and a single machine can
operate a variety of bag types and sizes, and the switching is
simple and the workload is small. It can be operated with various
types of feeding and weighing equipment, and can be applied to
different material packaging requirements, such as granular
materials, powders, sauce liquids and other food and non-food
products. The weighing equipment is controlled by the host PLC, and
the connection is simple. The action mode and unloading time of the
host can be adjusted according to different material properties and
packaging volumes to achieve the best packaging effect.
The single-station packaging machine has a compact structure and
can provide packaging speeds ranging from 6 to 15 packs/min,
roughly 30 packs/min. It is especially suitable for large, medium
and small users who have a small workshop space, a small amount of
packaging, and who want to upgrade the automation of the packaging
process but do not want to invest a lot of supporting funds.
