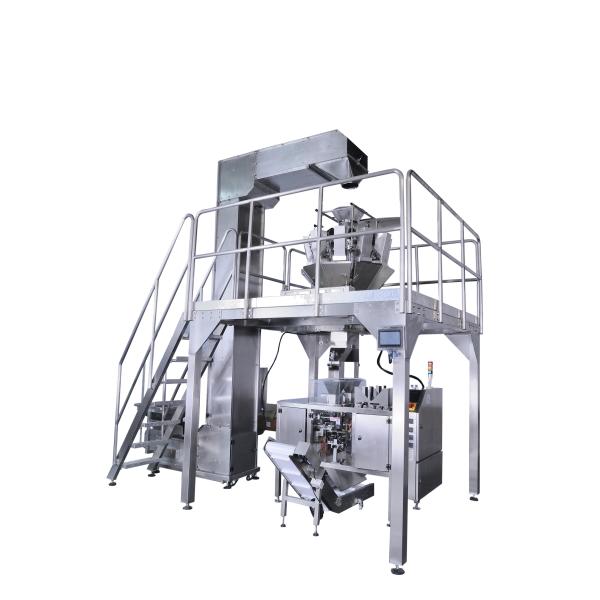

Doy Bagger Automatic Mini Filling and Sealing Packing Machine
Machine Specification:
| Item | 200 | 300 | 430 |
| Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
| Bag size | 100mm≤L≤200mm | 100mm≤L≤300mm | 100mm≤L≤430mm |
| 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| Bag Type | 3 Side Seal Bag, Stand-up Bag |
| Upgradable Bag Type | N/A | Gusset Bag, Zipper Bag, Flat Bottom Pouch
(Need additional purchase of functional device) |
| Speed | 0~26bags/min | 0~15bags/min |
| Sealing Type | Plain weave | Straight grain, pitch is 1mm (Optional reticulate) |
| Sealing Width | 8mm | 10mm(5--20mm can be customized) |
| Voltage | 220V, Single-phase, 50/60HZ, 1KW | 220V, Single-phase, 50/60HZ, 1.2KW |
| Air Pressure | 0.65Mpa |
| Air Consumption | 0.2m³/min | 0.3m³/min |
| Standard machine, no additional function |
| Body Dimension | 1080*535*1010mm | 1770*600*1230mm | 1770*600*1360mm |
| Packing Dimension | 1240*670*1320mm | 1860*710*1550mm | 1860*710*1650mm |
| Export non-fumigation wooden case |
(We can provide you with exclusive customized services according to
your needs!)
The Mini Doypack packing machine can be operated with various types
of feeding and weighing equipment, and can be used for different
material packaging requirements, such as granular materials,
powders, sauce liquids and other food and non-food products. The
weighing equipment is controlled by the host PLC, and the
connection is simple. The action mode and unloading time of the
host can be adjusted according to different material properties and
packaging volumes to achieve the best packaging effect.
Applicable materials: granules, small pieces, powder, liquid, paste
and other food and non-food; such as pet food, candy, coffee beans,
nuts, grains, coffee powder, flour, ketchup, life care liquid, etc.
Ability to work:
●Package weight: 1.5Kg or above; generally determined according to
the material properties and the actual capacity of the packaging
bag
●Packing speed: 6~15 packs/min for single station model; 12~30
packs/min for double station model;
Generally, it depends on the type of material, filling amount,
character, fluidity and actual packaging requirements. The more
movements, the corresponding reduction in speed.Self-tightening
chain, nitrogen filling and vacuuming will reduce the overall
running speed;
●Package size: bag width 80~300 mm; bag height (length) 150~430 mm;
It will be adjusted according to different bag types, and when it
is required to automatically open the self-closing chain, the size
requirements: width 130mm x height 150mm x chain lip 35mm
●Applicable bag type: stand-up bag, three-side sealing bag, flat
bottom bag, box bag, organ bag
